Hydraulic Rack & Pinion Actuators

Hydraulic Rack & Pinion Actuators
Hydraulic Rack & Pinion Actuators
Product Code : 07
Product Description

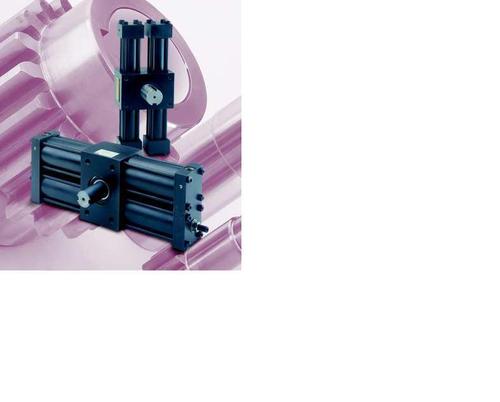

Hydraulic Rack And Pinion Rotary Actuator (Parker Hannifin)

HTR Hydraulic Rotary Actuators

For working pressures up to 210 bar
Features:

  • Provides uniform torque in both directions
  • Simple, compact design
  • Wide range of sizes
  • High torque output from a small envelope
  • No external linkage needed for rotary motion
  • Excellent holding capability
  • Rotation can be specified to suit application
  • Supports radial and thrust loads

  • Displacement: 0.1 cm3 / degree to 65 cm3 / degree
  • Torque: 80 Nm to 68000 Nm Continuous Duty
  • Rotation: 900, 1800 , 3600 .

LTR Hydraulic Rotary Actuators

For low pressures hydraulic applications up to 70 bar

LTR Series actuator is suitable for low pressure hydraulic applications.

Standard Rotations: 900, 1800, 2700, 3600, 4500

M Series - Heavy Duty Mill Series Rotary Actuators

  • Maximum operating pressure: 3000 psi (207 Bar) hydraulic
  • Standard rotations: 900, 1800, 3600
  • Rotational tolerances: -00, +20
  • Output torques @ 3000 psi (207 Bar): 75,000 lb-in to 50,000,000 lb-in
  • Maximum breakaway pressure: 75 psi (5 Bar)
  • Operating temperature:
    • Standard nitrile seals -400 to 1800F (-400 to 820C)
    • Fluorocarbon seals -200 to 2500F (-290 to 1210C)
  • Mounting orientation: Unrestricted
  • Timing: Keyway located at 12:00 position at midstroke of actuator
  • Housing:

Heavy duty ductile iron (units up to 1000M),

Steel Weldments (units larger than 1000M)
