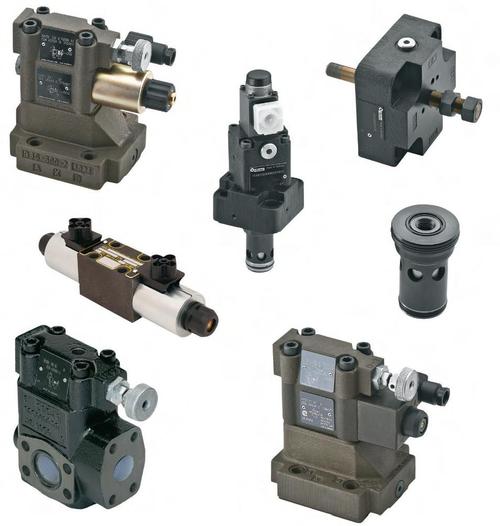

Hydraulic Valves

Hydraulic Valves
Hydraulic Valves
Product Code : 05
Product Description

Hydraulic Valves

1. Direction Control Valves:

5 sizes from NG 6 to NG 32. Flow up to 2000 lpm, 350 bar. Electric, hydraulic and pneumatic actuation.

2. Low Watt Direction Control Valves:

Electrical connection to DIN 43650 or M12X1 and DESINA Version.

3. Electric Control Pilot Operated:

4 sizes from NG10 to NG 32, Flow up to 2000 lpm, 350 bar, Manifold mounting according to DIN, ISO, CETOP, NFPA.

4. Proportional Valves:

5 sizes from NG 6 to NG 32. Flow up to 2000 lpm, 350 bar, Manifold mounting according to DIN, ISO, CETOP, NFPA. Interfaces with integrated electronics. High response for closed loop application.

5. Digital Electronics for Valve amplifier:

Digital and reproducible input signals, ramps parameters. Double PWM amplifiers. High safety and compliant with EMV specifications. RS 232 serial interface. For Electrohydraulic axis regulators.

6. Pressure, flow and check valves:

4 sizes for NG 6 to NG32. Flow up to 350 lpm, 350 bar, manifold mounting, mechanically adjustable, Electrically dischargeable or proportionally adjustable through integrated or external electronics.

7. Flow Control Metering and shut off valves:

Manatrol color flow series: 9 Sizes from 1/8 inch to 2 inch BSP. Flow up to 600 lpm, 350 bar. Inline & manifold mounting.

8. Sandwich Type Manapak Valves:

4 sizes NG 6 to NG 25. Up to 350 bar. RM Pressure relief Valve. PRM pressure reduction valve, FM flow control valve. CM directly operated check Valve, CPOM Pilot operated check Valve.

9. Pressure Switches:

Flange & threaded connection. Switching pressure range 3 -250 bar, Pressure capability 315 bar.

Adjustments with hollow hexagonal screw or scaled knob. AC/DC power supply. Optional locking knob.

10. Pressure Intensifiers:

Mounting pattern NG 6. Check valves NG 6 and NG 10 with subplate mounting option. Maximum pressure up to 500 bar. Transmission ratio 1:2 and 1:4. Continuous flow increases with minor pulsation effect.

11. Threaded Cartridge Valves:

Directional pressure, flow and shut-off valves. Housing optional. 5 sizes up to 250 lpm, 210 bar.

Solenoid or proportional actuation. Industrial or mobile applications.

12. Slip-in Cartridge valves:

DIN 24342. 8 sizes NG 16 to NG 100, Flow up to 10000 lpm, 350 bar,

Modular construction system for pilot valves and cartridges. Also as safety valve with position control position control.
