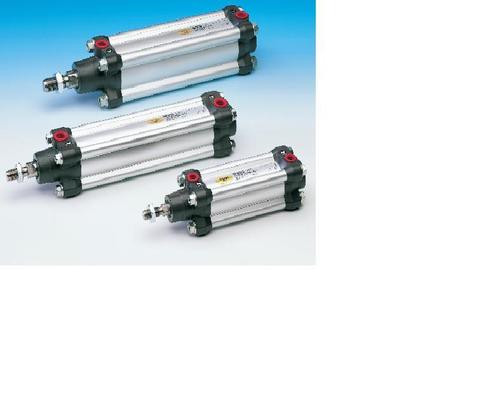

Pneumatic Linear Actuators

Pneumatic Linear Actuators
Pneumatic Linear Actuators
Product Code : 17
Product Description

 Pneumatic Linear Actuators

Food Industry

Bus & Coach Industry

Rail Industry

Road Transport Industry

Primary Aluminum Industry

Parker in the Tire Industry

Parker in Automobile Manufacturing

Products Offered

Linear Actuators

P1G Cylinders: Ø6, 10 & 16mm Bore sizes, Non-lube operation Corrosion resistant design Integral mounting thread

C05 Pancake Cylinders: Ø8 - 63mm bore sizes, Short stroke providing high clamping force

 P1J Compact Cylinders: Ø12 - 63mm, Stroke up to 100mm, Magnetic Piston as Standard, Range of mountings & sensors.

 P1M Short Build Cylinders: Ø12 - 100mm, Stroke lengths up to 500mm, Magnetic piston, Range of mountings & sensors.

P5T Compact Cylinders

P1K Cylinders: ˜32 - 125mm Bore, Designed for dry piston rod operation, End stroke buffers, Position sensing.

P1S Stainless Steel Cylinders: Stainless steel, ISO 6432 10 - 25mm, ISO 6431 ˜32 - 125mm, Magnetic piston

7112 All Round Cylinders: ˜32, 40 & 50mm, Non-lube, Magnetic piston, Adjustable cushioning

P1A Mini ISO Cylinders: 10 - 25mm to ISO 6432, Magnetic piston, End stroke buffers, Adjustable cushioning.

PAD -E Mini ISO Cylinders: 10 - 25mm to ISO 6432, Lightweight plastic end caps, Magnetic piston, End stroke buffers.

P1D ISO/VDMA Cylinders: ˜32 - 125mm to ISO / VDMA, Adjustable cushioning, Non-Lube, Magnetic piston

Rod Guidance for ISO Cylinders: ˜32 - 100mm, Highly accurate guidance, High torque loading capacity

P1E VDMA 24562 Cylinders: ˜160 - 200mm to VDMA standard, Magnetic piston, Non-lube, Tie rod construction

P1C ISO Cylinders: ˜32 - 125mm to ISO / VDMA standard, Magnetic piston, Non-lube, High -  Low Temperature Versions

C41 ISO 6431 Cylinders: ˜160 - 200mm ISO standard, Heavy duty tie rod design, Magnetic piston, Tandem, Thru-rod

P1R Rodless Cylinders: 16 - 63mm, Stroke up to 7000mm, Integral magnets, Extended or twin-piston versions.

Magnetic Rodless cylinders: 3 sizes with strokes up to 2000mm, Long life cycle, Mechanical protection, Position control.


Air Bellows: 10 sizes ˜70 - 660mm, Strokes from 45 - 430mm, High thrust frictionless movement, Maintenance free.

C0D - C0P Thrust Cylinders: Short stroke high thrust design, Diaphragm or piston versions, Single or double acting.

 Air Clamp Cylinders: Range of imperial sizes, Single acting, Ideal for mechanical clamping, Compact design

Hydrochecks: Range of imperial sizes, Gives smooth control feeds, Strokes up to 450mm
