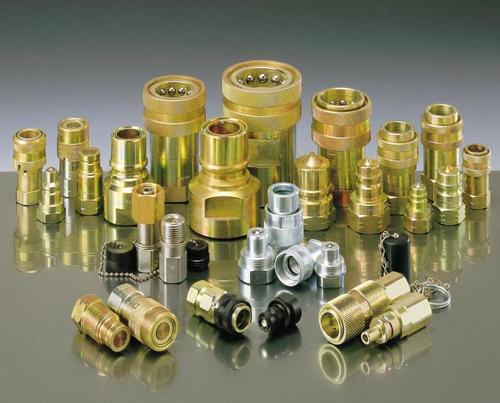

Quick Release Couplings

Quick Release Couplings
Quick Release Couplings
Product Code : 12
Product Description

Quick Release Coupling: Selection Guide

  Valving Body size Material* Locking  Std. Seal Material** Temp Range** Rated Pressure
Br. S S3 S6 Mechanism

General  Purpose

80 Series Poppet 1/8 - 2 1/2"



      Ball Nitrile  - 400 to +2500F 800 to 5000 PSI
60 Series Poppet 1/4 to 1"
      Ball Ethylene / Propylene - 650 to +4000F
6600 Series Poppet 1/4 to 1"
    Ball Nitrile - 400 to +2500F 4000 to 5000 PSI
SM Series Poppet 1/4 to 3/4"
    Ball Nitrile - 400 to +2500F 4500 to 6000 PSI
HP Series Poppet 1 to 1 1/2"
    Ball Nitrile - 400 to +2500F 5000 PSI
4000 Series Poppet/Ball 1/4 to 1"
    Ball Nitrile - 400 to +2500F 3000 PSI
4200 Series Poppet/Ball 3/8 to 1/2"
    Ball Nitrile - 400 to +2500F 3000 PSI

Non-Spill

NS Series Flush Face 3/8 to 1"
    Ball Nitrile - 400 to +2500F 2500 PSI
Adaptor Flush Face/Poppet 1/2"
    Ball Nitrile / Polyurethane - 400 to +2500F 3000 TO 3625 PSI
FF Series Flush Face 1/4 to 1"
    Ball Nitrile / Polyurethane - 400 to +2500F 3000 TO 5000 PSI
FEM Series Flush Face 1/4 to 1"
    Ball Nitrile / Polyurethane - 400 to +2500F 3000 TO 5000 PSI
FS Series Flush Face 1/4 to 1"        â€¢  Ball Fluorocarbon - 150to +4000F 2000 PSI

Non-Spill Connect Under Pressure

FC Series Flush Face 3/8 to 3/4 "
    Ball Nitrile / Polyurethane - 400to +2500F 3000 PSI
FEC Series Flush Face 1/2 to 3/4"
    Ball Nitrile / Polyurethane - 400to +2500F 3000 PSI
6100 Series Flush Face 3/4 to 1 1/2"
      Threads Nitrile - 400to +2500F 2000 TO 3000 PSI
Connect Under Pressure
8200 Series Poppet 1/2"
    Ball Nitrile - 400 to +2500F 3000 PSI
9200 Series Poppet 1/2"
    Ball Nitrile - 400 to +2500F 3000 PSI
5000 Series Ball 1/2"
    Threads Nitrile - 400to +2500F 2500 PSI

High Pressure

FH Series Flush Face 3/8"
    Ball Nitrile - 400 to +2500F 10000 PSI
3000 Series Ball 1/4 to 3/8"
    Threads Polyurethane - 220 to +2300F 10000 PSI
TC Series Poppet 3/8"
    Ball Fluorocarbon - 150 to +4000F 10000 PSI
1141 Series Poppet 1/4"
  Threads Polyurethane - 400 to +2500F 10000 PSI

Mold Coolant

Moldmate Valved & Unvalved 1/4 to 1/2"
      Ball Silicone - 200to +4000F 200 PSI

High Flow

ST Series Unvalved 1/8 to 1 1/2"


  Ball Nitrile - 400to +2500F 2500 TO 6700 PSI
HO Series Unvalved 1/4 to 1/2"
    Ball Nitrile - 400 to +2500F 10000 TO 15000 PSI
Water Service Unvalved 3/4"
      Ball Nitrile - 400 to +2500F 200 PSI

Special Purpose - Miniature

DM Series Poppet 1/8"
      Ball Fluorocarbon - 150 to +4000F 250 PSI

See Fluid Compatibility chart and/or consult factory for questions regarding proper material for specific applications.
*Material Code: Br = Brass; S = Steel; S3 = Stainless Steel; S6 = 316 Stainless Steel

**Optional Seals  Seal Material              Specific Coupling Series Using Optional Seal Suffix Designator at left
W Ethyelene Propylene 60, 6600, 4000, 4200, 6100, 5000, 8200, 9200, ST
Y Fluorocarbon 60, 6600, 4000, 4200, 6100, 5000, 8200, 9200, ST, Moldmate (if used with oil based media only)
Z Neoprene 60, 6600, 4000, 4200, 6100, 5000, 8200, 9200, ST
E5 Ethyelene Propylene SM, HP, NS, FF, FE, FEM, FH, FS, WB, HO
E4 Fluorocarbon SM, HP, NS, FF, FE, FEM, FH, FS (STD-no suffix needed), WB, HO, TC (Fluorocarbon only-no suffix needed)
E12 Neoprene SM, HP, NS, FF, FE, FEM, FH, FS, WB, HO
E47 Kalrez®/Chemraz® SM, HP, NS, FF, FE, FEM, FH, FS (Contact the division re: Perfluoroelastomer options)
    3000 and 1141 with polyurethane only (no suffix needed)
    Water Service (Buna-N only)
